Production capacity: 50-100kg/hr(depends on different product formulation)
Product work flow scheme:
A. Task purpose: according to industrial art formula requirements: (1) make an accurate measurement feeding after premixing material resin and additives to make sure the accuracy of formula and stability of product quality; (2)complete muti component mix in twin screw extruder, continually compound and disperse until the material is stabilization to extruding pelletizing.
B. Feeding method: material resin and additives feeding; adopt twin screw metering feeder, feeding from the above of 1st barrel;
Main technical parameter:

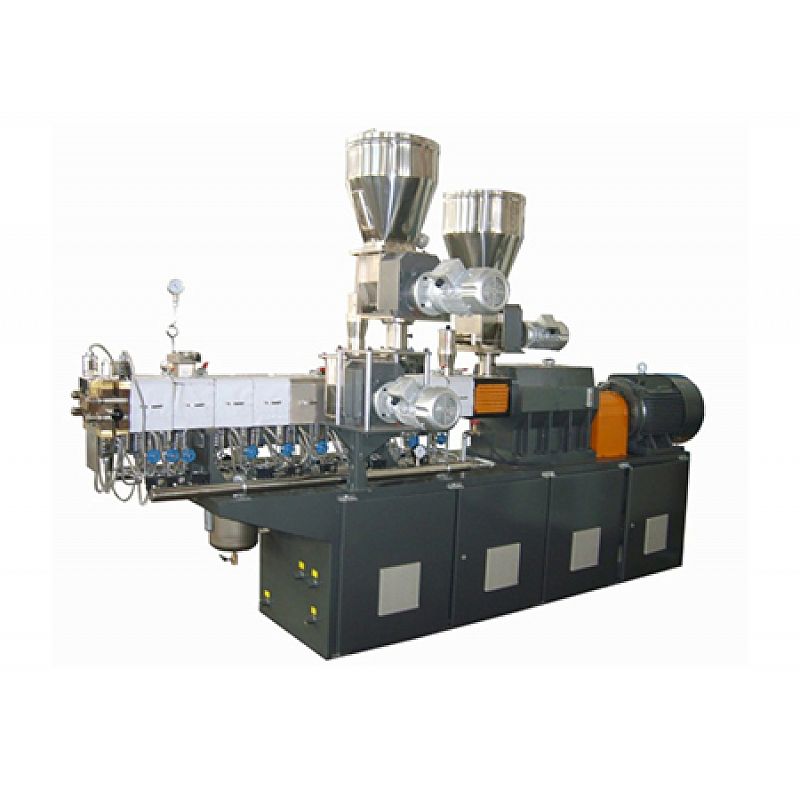

1. Main extruder type: TDS-40B/600rpm-30kw-44:1;
2. Screw diameter: Ф41mm;
3. Main extruder L/D: 44:1;
4.Screw,barrel material: excellent nitriding steel(38CrMoAlA),through nitriding process;
5. Main motor power: 30kw(AC);
6.Main screw rotating speed : 60~600rpm;
7. Barrel heating power: ~22.5kw;
8. Total install power: ~60kw;
